SELF PROPELLED BARGE FOR BARITO RIVER
SELF PROPELLED BARGE FOR BARITO RIVER

Problem Statement

Existing TOP - PML and others coal barging Operator used Conventional Tug and Barge 4000 DWT having a big problem at shallow water river especially at summer (30% off) and many kind of garbage, stones, river banks in Lines 2 (Muara Laung - Paring Lahung - Teluk Timbau), 120 nm.

Goal Statement

Increase up to 70 % or 1.7 GP Ratio Existing PML Barging for TOP.

Innovative Solution

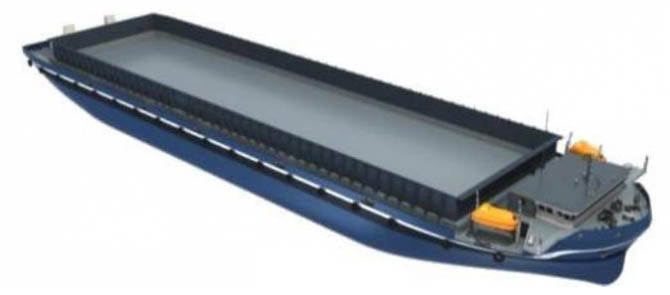

Self Propelled Barge 8,000 ton

  • High maneuveribility
  • Lower operating cost
  • Reduce handling time in port
  • High-load flexibility
  • Easy to ship development
  • Reduce emissions due to IMO Engine standard
  • More safety in operation and controlable
  • More comfortable and healthy operation

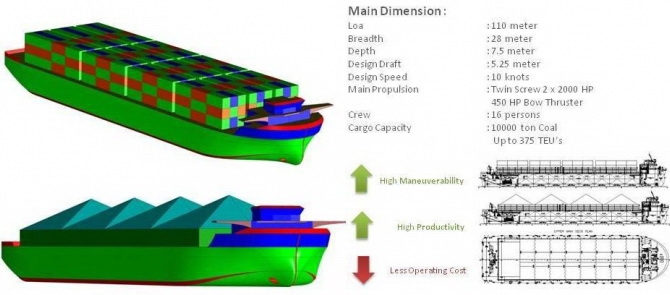

MULTI PURPOSE SPB
MULTI PURPOSE SPB

Multipurpose Self Propelled Barge are suitable for both dry bulk (such as coal) and container.

Increase revenue and increasing ship utilization

Main Dimension :

LOA                        110 meter

Breadth                   28 meter

Depth                      7.5 meter

Design Draft          5.25 meter

Design Speed      10 knots

Main Propulsion    Twin Screw 2 x 2000 HP

                                  450 HP Bow Thruster

Crew                        16 men

Cargo Capacity      1000 ton coal

                                   375 TEU's
